Description :

Pallet truck scale supplied with new DFW series integrated weighing indicator. The new program allows the user to easily access the main soGware functions and weighing operations.TPWA's flexibility makes them indispensable in harsh working enviroments for who requires accurate pallet truck weighing. Available also CE-M APPROVED

Main Features :

• Maximum lifting capacity: 2000 kg.
• Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.
• Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions.
• Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions.
• Bearing structure in extra thick sheet steel and oven-fire painted interior construction.
• Standard fitted with +/-160° swivelling column head.
• Steering wheels and double loading rollers with a poliurethane coating.
• 4 stainless steel IP68 load cells for the legal for trade use version, aluminium IP67 load cells for the internal use version.

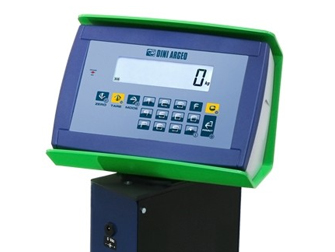

• Indicator with easy to clean ABS waterproof IP65 enclosure built to withstand humid and dusty environments; large LCD display 25-mm high contrast digits which are clearly visible even in poor lighting conditions; 17-key numerical/functional waterproof keyboard.
• Calibration and Set-Up configurable from keyboard or from PC with DINITOOLS.
• Standard supply with extractable rechargeable long lasting battery, with INSTAPLUG reversible quick coupling connector. Fitted with battery charge.
• 60-hour approximate operating time or three months with the tipycal non continuous use, thanks to its auto switch-off function.
• Programmable auto power saving function. Low Battery Warning.
• Equipped with 230Vac 50 Hz battery charger.
• Bi-directional RS232/C port configurable for connection to printer.
• Bi-directional RS232/C serial output for radio modem, PC or portable terminal.

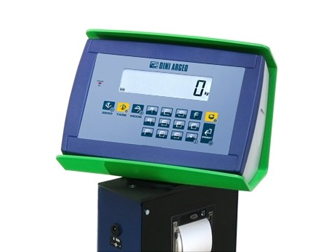

• Fitted with thermal printer, with Date&Time card.

Description :

Pallet truck scale supplied with new DFW series integrated weighing indicator. The new program allows the user to easily access to main soGware functions and weighing operations. TPWA's flexibility makes them indispensable in harsh working enviroments for anyone who needs to weigh accurately any type of product on a pallet. Available also CE-M APPROVED.

Main Features :

• Maximum lifting capacity: 2500 kg.
• Accuracy: +/- 0.05% of the maximum capacity.
• Fork dimensions 1150 x 550 x 85 mm.
• Weighs about 125 kg.
• Bearing structure in extra thick sheet steel and oven-fire painted interior construction.
• Standard fitted with +/-160° swivelling column head.
• Steering wheels and double loading rollers with a poliurethane coating.
• 4 stainless steel IP68 load cells.
• Indicator with easy to clean ABS waterproof IP65 case enclosure built to withstand humid and dusty environments; large LCD display with 25 mm high contrast digits, which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard.
• Calibration and Set-Up configurable from keyboard or from PC with DINITOOLS.
• Power supply through built-in extractable rechargeable battery.
• 60-hour approximate operating time or three months with the typical non continuous use, thanks to its auto switch-off function.
• Programmable auto power saving function.
• Low Battery Warning.
• Equipped with 230Vac 50 Hz battery charger.
• Bi-directional RS232/C port configurable for connection to printer.
• Bi-directional RS232/C serial output for radio modem, PC or portable terminal
• IR input for managing the remote control.
