Description :

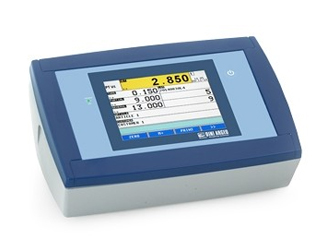

Weight indicator which is suitable tomanage digital load cells for weigh bridges. It allows the visualization of all the data related to the weighing and the personalization of the screens, greatly simplifying the operations of the user. Equipped with 3 serial ports, Ethernet port, transmission protocols for data communication, fully configurable printouts, integrated alibi memory and input for barcode/badge reader. CE-M approved (OIML R-76 / EN 45501).

Main Features :

• Power supply unit specifically for digital load cells.
• Protection board for power supply circuit and communication between digital load cells and self-resetting Surge Arresters..
• Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
• Multilanguage software.
• QWERTY, AZERTY o QWERTZ keyboard, selectable.
• ABS waterproof enclosure, with new IP65 protection system (IP40 on version with thermal printer).
• Dimensions: 278x125x186 mm.
• Suitable for use on the table, column, or wall.
• Real time clock and permanent data storage.
• Fitted alibi memory, integrated on the motherboard.
• Slot for built-in micro SD for recording logos (upon request).
• Functions available with DINITOOLS utility
  • Configuration, data entry and print formatting.
  • Recording and filing of all the information on PC.
  • Complete retrieval of the configuration.
  • Instrument calibration with numeric values.
  • Customization of the screens.
• 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
• 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
• Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
• Management of the most common digital load cells for weigh bridges (with DIGIKIT option and AF03GT firmware), also CE-M approved applications.
• Connectable to printers and labellers with free programmation of the printout formats.
• 110-240 Vac power supply.

Description :

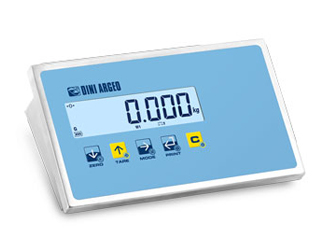

Easy to programme and use, versatile and high performing weight indicator. The wide range of available functions and interfaces, make it suitable for multiple industrial and commercial weighing applications, such as floor scales, mobile weighing, etc. Case in IP68 stainless steel. CE-M approvable (OIML R-76/EN 45501).

Main Features :

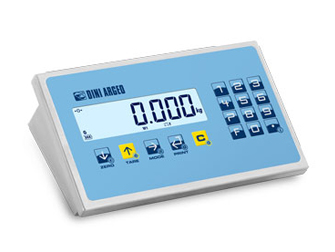

• 5/17-key functional waterproof keypad, with indication for quick access to main functions and regulations.
• LCD 25mm backlit display with 6 high contrast digits and icons for indication of active functions.
• Waterproof IP68 STAINLESS STEEL case, with sealed rubber gasket, easy to clean and resistant in harsh and corrosive environments.
• Dimensions in mm: 243x145x78,4 mm.
• Suitable for use on the table, column, or wall.
• A/D 24 bit converter, 4 channels, up to 200 conv./sec. autoselect and up to 8 signal linearisation points.
• Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
• Up to 1.000.000 displayable divisions with built-in resolution up to 3.000.000 points.
• Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.
• Digital calibration and set-up from keypad or from PC with DINITOOLS.
• Power supply 110-240 Vac.
